by Arne Sommer

Historical Intersection with Raku

[34] Published 29. September 2019

Perl 6 → Raku

This article has been moved from «perl6.eu» and updated to reflect the language rename in 2019.

This is my response to the Perl Weekly Challenge #027.

Challenge #27.1

Write a script to find the intersection of two straight lines. The co-ordinates of the two lines should be provided as command line parameter. For example:

The two ends of Line 1 are represented as co-ordinates (a,b) and (c,d).

The two ends of Line 2 are represented as co-ordinates (p,q) and (r,s).

The script should print the co-ordinates of point of intersection of the above two lines.

Note that the challenge specifies two line segments («The two ends ...»), and not two lines. The difference is that the line segments start and stop at the end points, whereas lines continue infinitely in both directions.

I found a nice formula on this page: www.cs.swan.ac.uk/~cssimon/line_intersection.html. Then it is simply a matter of translating it to code:

File: intersection ```unit sub MAIN (Numeric \x1, Numeric \y1, Numeric \x2, Numeric \y2, # [1] Numeric \x3, Numeric \y3, Numeric \x4, Numeric \y4); my \ta1 = (y3−y4) * (x1−x3) + (x4−x3) * (y1−y3); # [3] my \ta2 = (x4−x3) * (y1−y2) − (x1−x2) * (y4−y3); # [3] my \tb1 = (y1−y2) * (x1−x3) + (x2−x1) * (y1−y3); # [3] my \tb2 = (x4−x3) * (y1−y2) − (x1−x2) * (y4−y3); # [3] my \ta = ta1 / ta2; # [2] my \tb = tb1 / tb2; # [2] if ta2 == 0 || tb2 == 0 # [4] { say "Colinear lines"; } elsif 0 <= ta <= 1 && 0 <= tb <= 1 # [5] { say "Segment intersection at x: { x1 + ta * (x2 - x1) } " ~ " y: { y1 + ta * (y2 − y1) }"; } else # [6] { say "General Intersection (outside the box)"; } ```

[1] The challenge uses the variable names a, b, c, d, p, q, r and s, but I have chosen to use the names x1, y1, x2, y2, x3, y3, x4 and y4 as done in the formula to reduce confusion.

[2] The two formulas.

[3] The intermediate values, as we need to check for division by zero.

[4] The check for division by zero.

[5] The check for intersection. Note the chained comparisons, e.g. `0 <= ta <= 1`,

[6] And the rest; where they intersect outside of the box.

Running it:

```\$ raku intersection 1 1 2 2 1 1 2 2 Colinear lines \$ raku intersection 1 1 2 2 1 1 2 212 Segment intersection at x: 1 y: 1 \$ raku intersection 1 1111 2 2 1 1 2111 21299 Segment intersection at x: 1.9918739 y: 11.0118156 \$ raku intersection 0 0 100 100 0 0 30 300 Segment intersection at x: 0 y: 0 \$ raku intersection 0 0 100 100 10 20 30 300 General Intersection (outside the box) \$ raku intersection 0 0 100 100 0 10 100 110 Colinear lines \$ raku intersection 0 0 100 100 200 200 300 300 Colinear lines ```

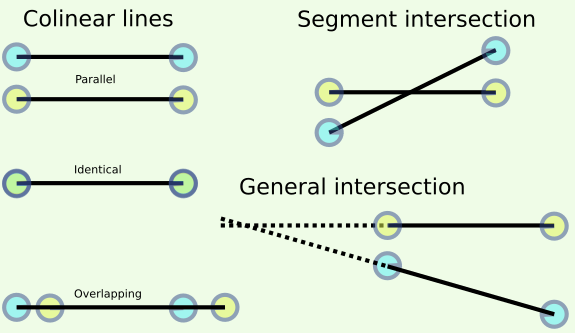

It may help to visualize it:

Note that we could have done the division (potentially by zero), and used a try/catch-block to sort it out for us instead. I don't think that it is worth while here, but it would have allowed verbatim algorithm usage (without the intermediary ta1, ta2, tb1 and tb2 steps).

Challenge 27.2

Write a script that allows you to capture/display historical data. It could be an object or a scalar. For example

`my \$x = 10; \$x = 20; \$x -= 5;`

After the above operations, it should list \$x historical value in order.

The obvious choice is the Proxy class, as it allows us to specify a custom setter and getter.

See docs.raku.org/type/Proxy for an explanation of the Proxy class. The following program is based on the example there.

File: proxy-faulty ```sub memoryvariable is rw { my \$val; # [1] my @hist; # [2] Proxy.new( FETCH => method () { \$val # [1] }, STORE => method (\$new) { \$val = \$new; # [1] @hist.push( Pair(now.Int => \$new) ); # [2] }, ); } my \$x := memoryvariable; # [3] \$x = 10; # [4] \$x = 20; \$x -= 5; say \$x; ```

[1] One variable for the value, used by FETCH and STORE.

[2] The history is stored in an array, as Pair objects. The first value is a timestamp (`now`), and the second the actual value. (But note that I do not access these values.)

[3] We set it up like this,

[4] and uses it like a normal variable.

See docs.raku.org/type/Pair for an explanation of the `Pair` type.

See docs.raku.org/routine/now for more information about `now`.

Running it:

```\$ raku proxy-faulty 15 ```

I have added timestamps on the values, to make it a little more interesting. Now, all that is left is actually retrieving that history...

The problem (with the Proxy class) is that we can only have one getter (FETCH) and one setter (STORE), and it isn't possibly to add methods or procedures to an instance. So the getter can either give us the current value (as done above), or the complete history. If we choose to return the complete history (to satisfy the challenge), this line will blow up: `\$x -= 5;`.

Conclusion; we cannot do this with a Proxy object.

It isn't possible to subclass Proxy in the current version of Rakudo (version 2019.07.1), but this challenge has pointed out the problem to the core developers so there is hope...

The interim solution is to store the history outside of the class, and let the custom setter set it, whereas the custom getter only returns the current value. Then we access the history circumventing the Proxy. The downside is that we have one common history! But we can work around that...

File: proxy-cheating ```my %hist; # [1] sub memoryvariable(\$label) is rw # [2] { my \$val; Proxy.new( FETCH => method () { \$val }, STORE => method (\$new) { \$val = \$new; %hist{\$label}.push( Pair(now.Int => \$new) ); # [3] }, ); } sub history (\$label) # [4] { return @(%hist{\$label}).map( *.value ); } sub history-timestamp (\$label) # [5] { return @(%hist{\$label}).map({ DateTime.new(\$_.key).local ~ ": " ~ \$_.value }).join("\n"); } my \$x := memoryvariable('x'); # [6] \$x = 10; \$x = 20; \$x -= 5; say \$x; say history('x'); # [4a] say history-timestamp('x'); # [5a] ```

[1] One global variable for the history.

[2] `\$label` is the history ID for the current variable, so that its history doesn't interfere with other variables history.

[3] Add the history to the global variable.

[4] This global procedure gives us the history, but only the values. It is called in [4a], with the correct ID.

[5] As above, but with the timestamps as well.

Running it:

```\$ raku proxy-cheating 15 (10 20 15) 2019-09-26T00:34:24+02:00: 10 2019-09-26T00:34:24+02:00: 20 2019-09-26T00:34:24+02:00: 15 ```

If you want several variables with history, set them up with different IDs.

Note that the history functionality doesn't work as intended if we use class instances, as we store a pointer to that instance and not the actual value in the history. Copying the class instance can solve that, but may lead to other problems (which I won't go into).

We could wrap the code above in a class, making the history access available only through a class instance. This will make the global history variable go away, but will make it impossible to use normal assignment and lookup.

I'll have a go at regardlessly, but without the Proxy object (as we'd loose access to it anyway). Here it is, without comments:

File: history-variable ```use lib "lib"; use HistoryVariable; my \$x = HistoryVariable.new; say \$x; \$x.set(10); say \$x; \$x.set(20); say \$x; \$x.set(5); say \$x.get; say \$x.get; say \$x.history; say \$x.history('time'); ```

Running it:

```\$ raku history-variable (Any) 10 20 5 5 (10 20 5) 2019-09-26T22:09:16+02:00: 10 2019-09-26T22:09:16+02:00: 20 2019-09-26T22:09:16+02:00: 5 ```

And then the module code:

File: lib/HistoryVariable.ramkumod ```use v6.d; class HistoryVariable { has \$!value; has @!history; multi method new { self.bless; } method set (\$new-value) { \$!value = \$new-value; @!history.push( Pair(now.Int => \$new-value) ); } method gist { return \$!value; } method get { return \$!value; } multi method history ('time') { return @!history.map({ DateTime.new(\$_.key).local ~ ": " ~ \$_.value }).join("\n"); } multi method history { return @!history.map( *.value ); } } ```

The gist method gives the current value when we access the variable directly (as in `say \$x;`). We can be explicit (and use `say \$x.get;`) as well.

And that's it.
